Installation Instructions

Installation time: 20-40 minutes

  • Place The Mousepaw on armrest
  • Lean back and reach forward
  • extend arm- adjust hand to center of mouse well.
  • Identify location and align L brackets under armrest
  • Apply hot glue to brackets
  • Install brackets flush with outside edge of armrest
  • Allow glue to cool and harden
  • Insert 4 short screws into L brackets
  • Position The Mousepaw on chair armrest
  • Secure straps loosely

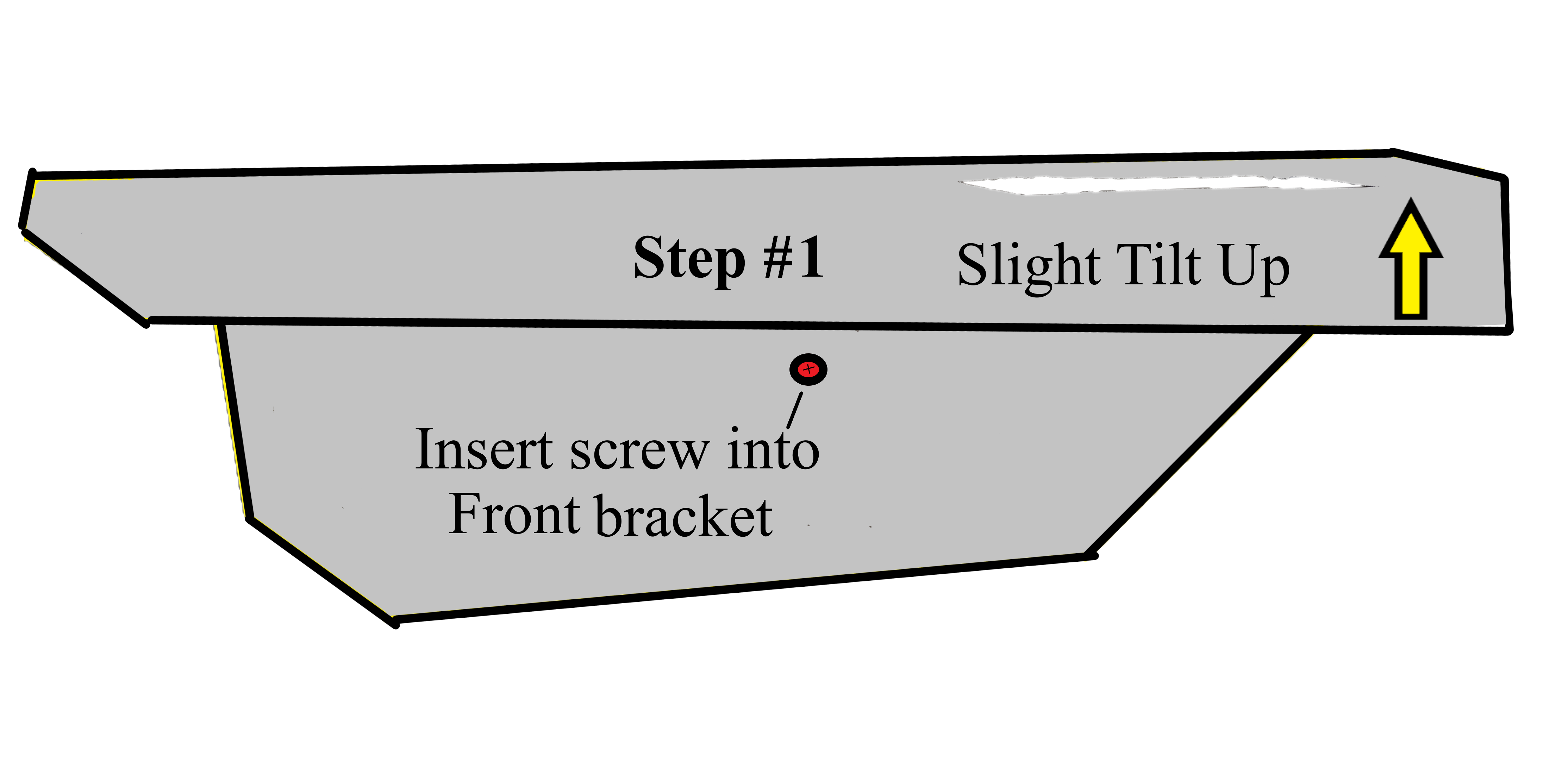

  • Adjust for front slightly tilted up
  • Insert Long screw into front bracket

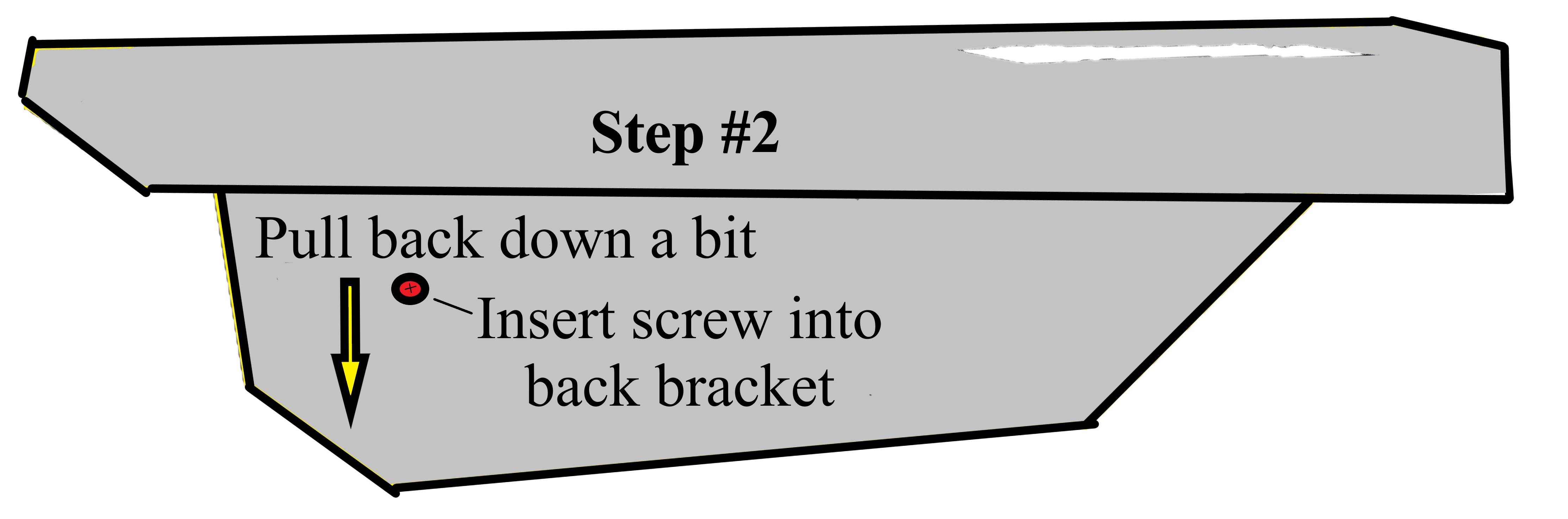

  • Pull back end down – Insert long screw into back bracket
  • Tighten straps and tuck away
  • Set Mouse pointer/cursor speed to “Fastest” in computer settings

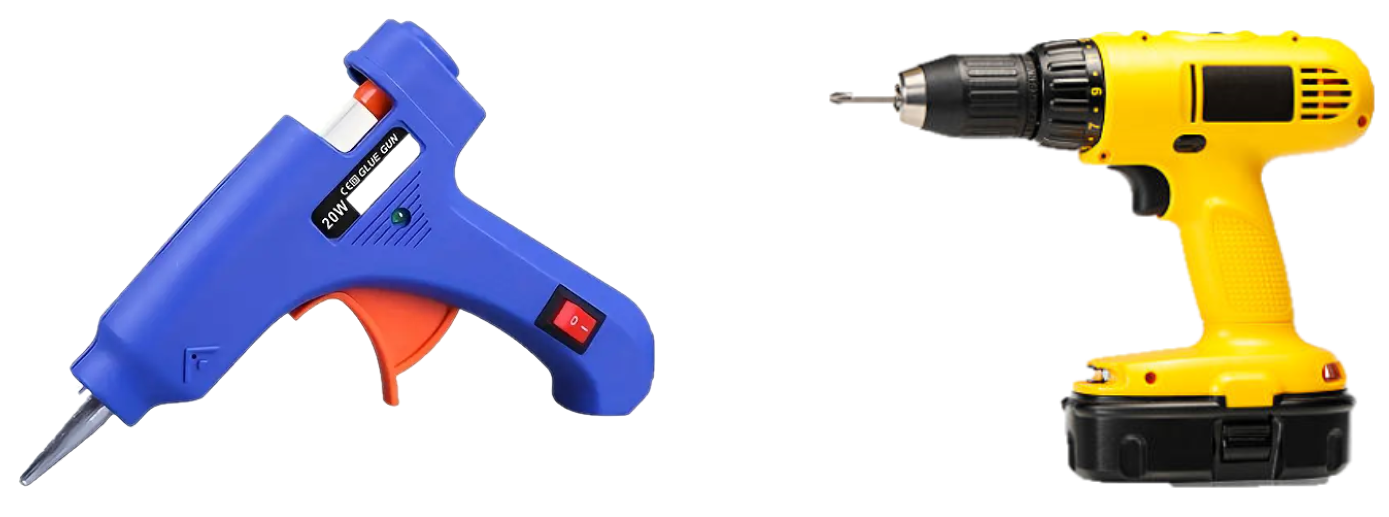

Tools required:

Drill with phillips head driver/bit
Mini Hot glue gun  & glue sticks are
Included with all orders!

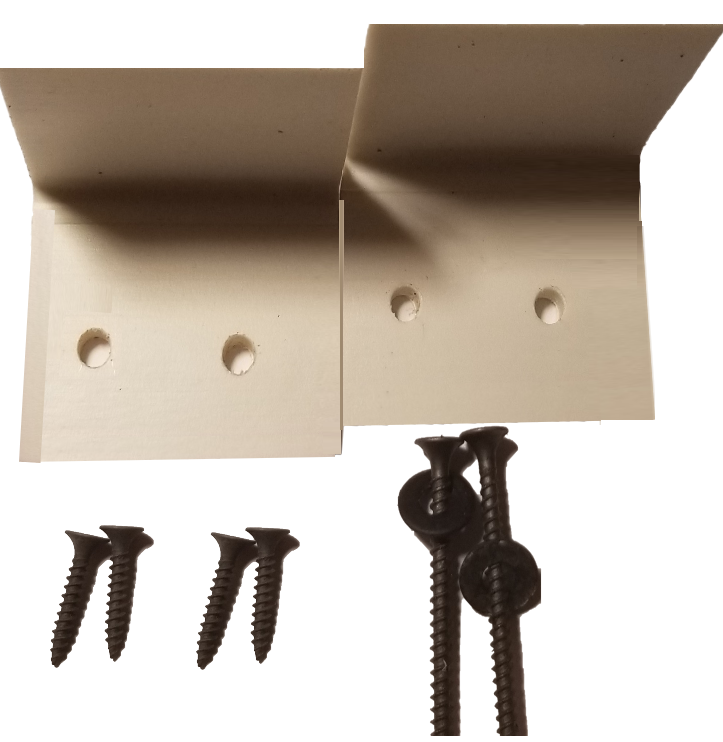

Hardware included:

2 –  L brackets

4 – Short screws

2 – Long screws with washers
